Bridge Mesh Steel Wire Mesh Machine , Adjustable Automatic Welded Wire Mesh Machine

I'm Online Chat Now

Bridge Mesh Steel Wire Mesh Machine , Adjustable Automatic Welded Wire Mesh Machine

China Bridge Mesh Steel Wire Mesh Machine , Adjustable Automatic Welded Wire Mesh Machine supplier
Bridge Mesh Steel Wire Mesh Machine , Adjustable Automatic Welded Wire Mesh Machine supplier Bridge Mesh Steel Wire Mesh Machine , Adjustable Automatic Welded Wire Mesh Machine supplier Bridge Mesh Steel Wire Mesh Machine , Adjustable Automatic Welded Wire Mesh Machine supplier Bridge Mesh Steel Wire Mesh Machine , Adjustable Automatic Welded Wire Mesh Machine supplier

Large Image :  Bridge Mesh Steel Wire Mesh Machine , Adjustable Automatic Welded Wire Mesh Machine

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-RM-2500Q

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: plastic warps
Delivery Time: 15 Workdays
Payment Terms: T/T, L/C, Western Union
Supply Ability: 25 Sets/Month
Contact Now
Detailed Product Description
Product Name: Steel Bar Welded Mesh MachineMachine Width: Max.2.5mm
Diameter: 5-12mm Control System: PLC Control
After-sales: Engineers Available To Service Machinery Overseas Materiall: Reinforcing Bar
High Light:

reinforced mesh welding machine

,

mesh panel welding machine

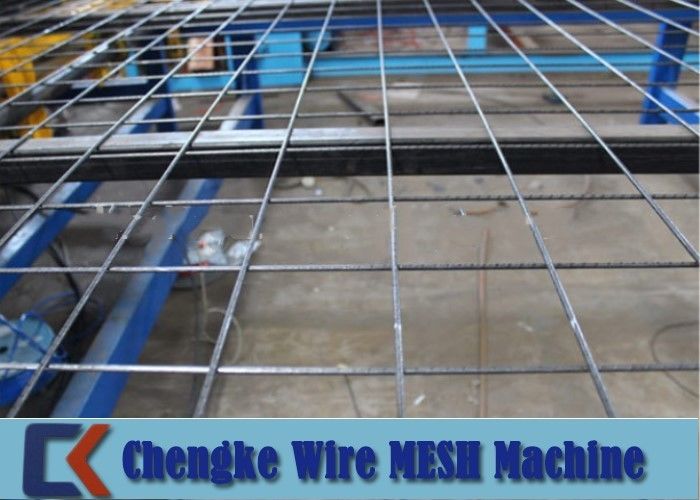

Steel Bar Welded Mesh Machine For Producing High - Level Construction And Bridge Mesh



description

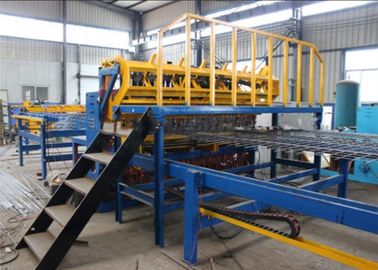

1 This welding machine with frame structure is used PLC control, specially for welding rebar mesh, used in wall, floor pouring, bridge, tunnel, support in coal mines, etc.

2 The space between longitude is adjustable before welding; The space between each woof can be pre-set in the PLC (different spaces can be preset).

3 This machine is used of water-cooling welding transformer, and enlarged the range of wire diameters.

4 When welding a row of woof bar, the welding transformer will be worked separately, in order to reduce capacity requirements of power transformer and current shock.

5 Woof bar feeding device with stepper motor drive can be dropping rebars automatically, and the woof bar can be placed accurately.


Features

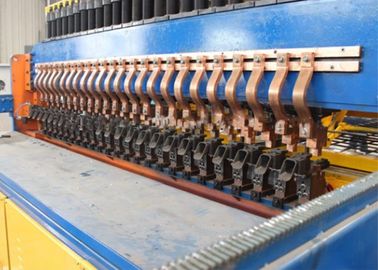

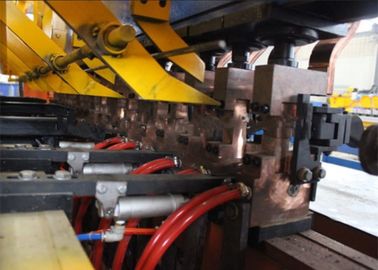

1. Water-cooling transformer and water-cooling lower electrodes to make sure the welding firm during a long working time, and prolong the service life.
2. Feeding and Welding System Cross wire feeding: Firstly, the coil wires are straighten and cut into fixed length by straightening cutting machine, which become weft wire. Then worker put the weft wires into wire hopper. Wire hopper under the control of step motor, the weft wires falling automatically one by one
Line wire feeding: warp wires are the same to weft wires, firstly use straightening cutting machine to straighten and cut coil wire into fixed length. Then the line wires are sent by labor and fed automatically, when it welding and drawing, labors can prepare the wires, it increases the production efficiency.

3. The mesh pulling system is controlled by step motor, which makes the pulling mesh aperture more standard and accurate.

Specification


Item CK-RM-2500 CK-RM-2900 CK-RM-3300
Number of Electrodes 24 28 32
Max. Mesh Width 2500mm 2900mm 3300mm
Wire Diameter 3-8mm&5-12mm 5-12mm 5-12mm
Mesh Length 2-12m 2-12m 2-12m
Cross Wire Space ≥50mm ≥50mm ≥50mm
Line Wire Space 100-200mm 100-200mm 100-200mm
Electric Capacity ≥315KVA ≥315KVA ≥315KVA
Welding Speed 80t/min 80t/min 80t/min
Control System PLC Control PLC Control PLC Control
Special specification is available according to your requirements.
