Product Details:
Payment & Shipping Terms:
|
| Product Name: | Brick Force Steel Rebar Mesh Making Machine / Brick Steel Bar Wire Mesh Machine | Mesh Width: | 780 Mm |
|---|---|---|---|
| Wire Diameter: | 1.5-3.0mm | Welding Speed: | 40-50times/min |
| Power: | Pneumatic | After Sale: | Engineers Available To Service Overseas |
| High Light: | reinforcing mesh machine,wire mesh knitting machines |
||
Brick Force Steel Rebar Mesh Making Machine / Brick Steel Bar Wire Mesh Machine
description
The brice force mesh welding machine adopts synchronous control technique.The welding time and separate welding are controlled by PLC system for digital input panel or touch screen buttons,more intelligent operations and rationalizing.The device has the advantages of stable performance,strong welding spot,accurate welding aperture.The machine adopts synchronous control technology of power electronic,auto-sharding,automatic rolling,high yield,stable performance,strong welding spot,without welded tracks.
1). This kind machine is used to make wire mesh for brick reinforcement and it is widely in
Africa area. It is controlled by intergrated electric circuit. Not only welding speed is fast but
also it is easy to learn and operate.
2). Cross wire is pre straightened and pre cut by wire straightening and cutting machine. Cross
wire feeding device is driven by step motor which make the hole accurate. Line wire is in coil
and straightened by wire straightening wheel. Line wire distance can be adjusted by moving
the electrode and cross wire distance can be adjusted by operating the PLC panel. And the
mesh pulling device is also driven by step motor which make the aperture accurate.
3). Both machine could produce three or four pieces of wire mesh at the same time.Each piece
of mesh have 8mm extra length at both side.
4). The available wire is black wire or galvanized wire.

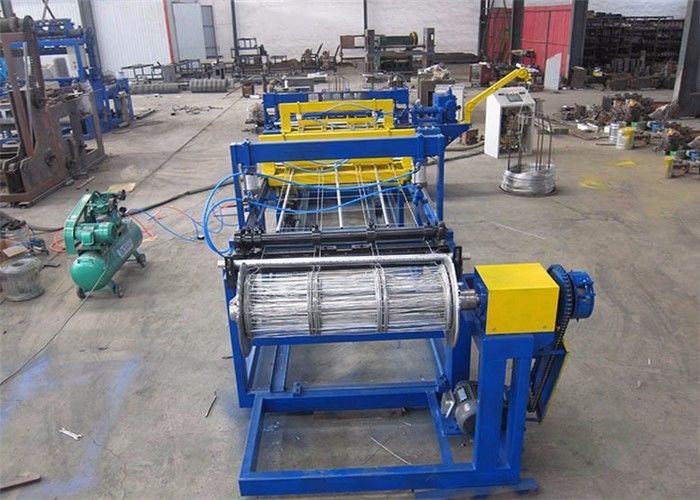

5). Finished product can be in roll or in panel.
Features
1. wire dia:2-3 mm ,
the cross spacing : 57mm,75mm,230mm
the line spacing :300mm
2.wire dia:1.5-2.5mm
the cross spacing:115mm,230mm
the line spacing :300mm
Both machine could produce three pieces of wire mesh at the same time.Each piece of mesh have 8mm extra length at both side.
The available wire is black wire or galvanized wire.
Usage
It is usually applied to wall reinforcement,has the characteristics of seismic resistance.
Specification
| Brick Force Steel Rebar Mesh Making Machine / Brick Steel Bar Wire Mesh Machine | |
| Number of electrodes | 8 or 6 |
| Max mesh width | 780 mm |
| Wire diameter | 1 . 5 - 3 . o mm |
| Cross wire space | 75 , 115 , 150 , 230 mm |
| Line wire space | 300 mm |
| Power capacity | 160 KVA |
| Welding speed | 30 - 40 nips/minute |
| Control system | PLC control |
