Custom Brick Force Wire Mesh Making Machine , Black Wire Wire Net Making Machine

I'm Online Chat Now

Custom Brick Force Wire Mesh Making Machine , Black Wire Wire Net Making Machine

China Custom Brick Force Wire Mesh Making Machine , Black Wire Wire Net Making Machine  supplier
Custom Brick Force Wire Mesh Making Machine , Black Wire Wire Net Making Machine  supplier Custom Brick Force Wire Mesh Making Machine , Black Wire Wire Net Making Machine  supplier Custom Brick Force Wire Mesh Making Machine , Black Wire Wire Net Making Machine  supplier Custom Brick Force Wire Mesh Making Machine , Black Wire Wire Net Making Machine  supplier

Large Image :  Custom Brick Force Wire Mesh Making Machine , Black Wire Wire Net Making Machine

Product Details:

Place of Origin: Hebei China
Brand Name: ChengKe
Certification: ISO
Model Number: CK-BM-780Q

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Packed according to international standard or as request
Delivery Time: 15 work Days
Payment Terms: L/C, T/T, , Western Union
Supply Ability: 35 Sets
Contact Now
Detailed Product Description
Product Name: Galvanized Wire / Stainless Steel Wire / Black Wire Brick Force Wire Making Machine Mesh Width: 780 Mm
Wire Diameter: 1.5-3.0mm Welding Speed: 40times/min
Power: Pneumatic After Sale: Engineers Available To Service Overseas
High Light:

wire net making machine

,

reinforcing mesh machine

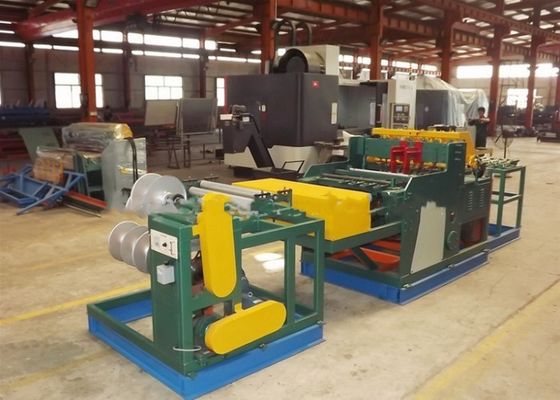

Galvanized Wire / stainless steel wire / black wire Brick Force Wire Making Machine





description



1. The machine adopts synchronous control technique.

2. The welding time and separate welding are controlled by PLC for system digital input panel or touch screen buttons.It can be more intelligent operations and rationalizing.

3. The advantages of the device are stable performance ,strong welding spot and accurate welding aperture.

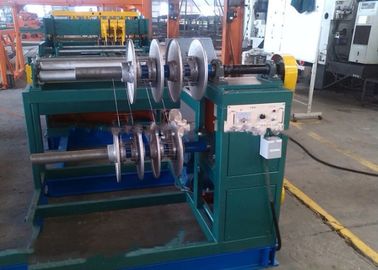

4. The machine adopts synchronous control technology of power electric,auto-sharding,automatic rolling,high yield,stable performance,strong welding spot,without welded tracks.

5. It is easy for operator.



Features



1. wire dia:2-3 mm ,
the cross spacing : 57mm,75mm,230mm
the line spacing :300mm

2. wire dia:1.5-2.5mm
the cross spacing:115mm,230mm
the line spacing :300mm

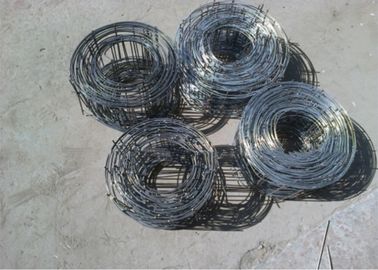

Both machine could produce three pieces of wire mesh at the same time.Each piece of mesh have 8mm extra length at both side.
The available wire is black wire or galvanized wire.



Usage



It is usually applied to wall reinforcement,has the characteristics of seismic resistance.



Specification



Galvanized Wire / stainless steel wire / black wire Brick Force Wire Making Machine

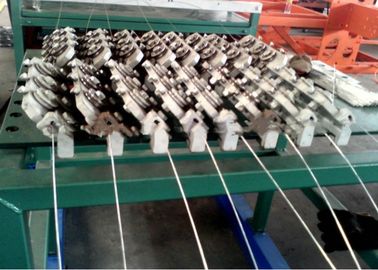

Number of electrodes 8 or 6
Max mesh width 780 mm
Wire diameter 1 . 5 - 3 . o mm
Cross wire space 75 , 115 , 150 , 230 mm
Line wire space 300 mm
Power capacity 160 KVA
Welding speed 30 - 40 nips/minute
Control system PLC control



Packing



1 . The spare parts and control cabinet will be loaded in wooden box.
2 . The main machine is nude packing or plastic packing



Service



Pre-Sales Service:

Inquiry and consulting support.

Sample testing support.

View our Factory.

Online visit

After-Sales Service:

Training how to install,operate and maintain the machine.

Engineers available to service machinery overseas.

One year gurantee for the whole machine.

Operation manual is availabl
