Product Details:
Payment & Shipping Terms:
|
| Product Name: | Automatic Chicken Cage Welding Machine Production Line | Inery Overseas Wire Diameter:: | 1.4-2.5 |
|---|---|---|---|
| Warranty: | 1 Year | After-sales: | Engineers Available To Service Machinery Overseas |
| Welding Speed: | 40-60 Times/minute | Voltage: | 380V |
| High Light: | chicken mesh making machine,wire cage welding machine |
||

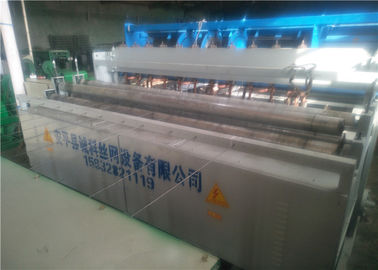

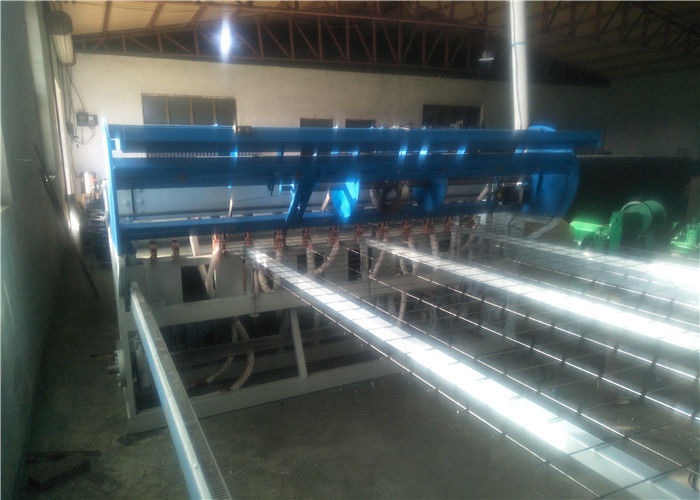

Automatic Chicken Cage Welding Machine Production Line For Making Pet Cages
description
This machine adopts synchronous control technology, power electronics and control welding time welding are all composed of digital integrated circuit, high control precision, stable performance, solder joint is firm, no burn marks blanking uniform accurate, mesh is neat, without cutting the grid size precision is high, the welding aperture can be adjusted arbitrarily within the specified scope
Features

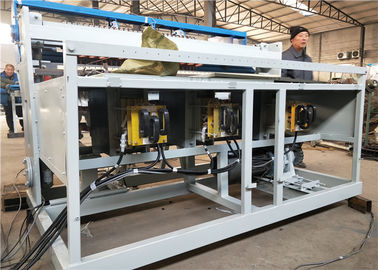

The machine is made of thick steel plate and profile steel, high strength, high toughness, main structure more solid.The welding adopts synchronous power control and separate-control, making the welding transformers working separately to reduce the capacity requirement of power transformer, reduce the impact current.The cross wire space adjustment adopts PLC micro-computer control, set on the touch screen.The mesh pulling system in cycle is automatically calculated. The mesh pulling car can pulling mesh by the cycle automatically.The machine will stop working automatically if there is no cross wires in hopper device.The cutting machine can cut the mesh as demand length automatically.
Specification
| Model | CK-AC-1 | CK-AC-2 | CK-AC-3 |
| Input power | 380V 50Hz | 380V 50Hz | 380V 50Hz |
| Max. width | 1200mm | 1200mm | 1000mm |
| Line wire space | 50-200mm | 50-200mm | 100-200mm |
| Cross wire space | 50-200mm | 50-200mm | 50-200mm |
| Wire diameter | 1.4-2.5mm | 1.4-2.5mm | 1.4-2.0mm |
| Rated capacity | 56kva*3 | 56kva*2 | 56kva*1 |
| Welding point No. | 25 | 25 | 11 |
| Motor power | 2.2KW | 2.2KW | 2.2KW |
| Cutting mesh | Automatic & Manual | Automatic & Manual | Automatic & Manual |
| Welding speed | 45 times/min | 45 times/min | 45 times/min |
| Weight | 2500kg | 2000kg | 1700kg |
Usage
Breed aquatic mesh ( poultry mesh , pigeon mesh, rabbit mesh , fox mesh and so on )
Building mesh ( reinforcing construction mesh , floor warning mesh , seed-bed mesh and room mesh )
Service
Pre-Sales Service:
Inquiry and consulting support.
Sample testing support.
View our Factory.
Online visit
After-Sales Service:
Training how to install,operate and maintain the machine.
Engineers available to service machinery overseas.
One year gurantee for the whole machine.
Operation manual is availabl
Sincerely look forward to cooperate with you ! For more details about wire mesh welding machine, welcome to contact with us in any time ! We will fully committed to provide the best quality products and services.
