Product Details:
Payment & Shipping Terms:
|
| Product Name: | Mechanical Steel Wire Chicken Cage Welding Machine | Wire Diameter: | 1.5-2.5mm |
|---|---|---|---|
| Warranty: | 1 Year | After-sales: | Engineers Available To Service Machinery Overseas |
| Galvanized Mesh Poultry Cage Welding Machine: | 50-200mm | Rated Capacity: | 80KVA*4 |
| High Light: | chicken wire mesh machine,wire cage welding machine |
||

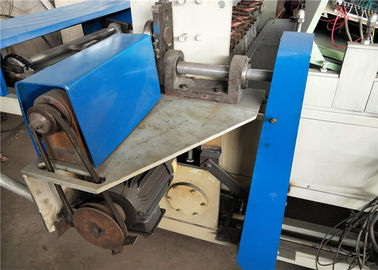

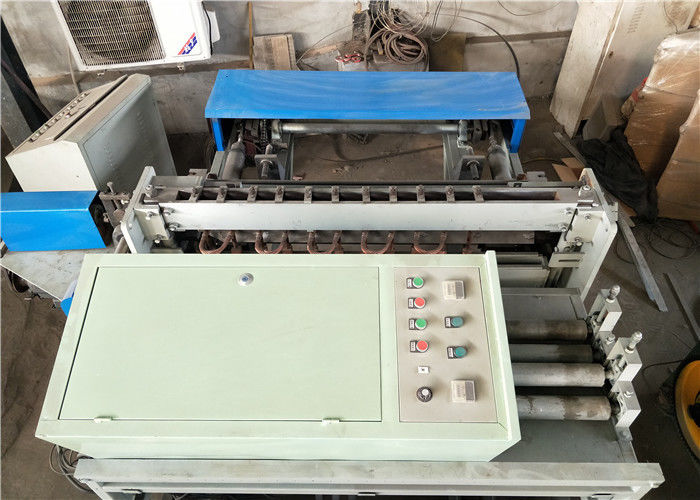

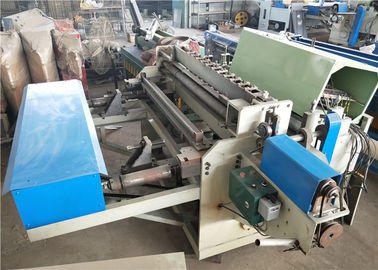

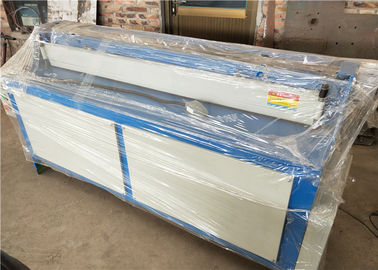

Mechanical Steel Wire Chicken Cage Welding Machine High - Speed Stability
description
This machine adopts electrical and electronic synchronous control technique, both welding time and separate-control welding is composed of digital and integrated electric circuit. This operation is accurate, it has stable function , firm welded point, without welded tracks. Not only welding speed is fast, but also it is easy to learn and operate. The machine is equipped with precise equipment for weft cutting and positioning, so the length of wefts is identical and regular , it is unnecessary to slice the side . Drawing mesh system adopts elastic tension and opening positioning mesh, it is easy to regulate mesh hole , and mesh opening size is rather accurate, welding aperture could adjust randomly within range.
Features
1. Business model:factory direct sale
2. Professional manufacture
3. No environment pollution
4. Smooth and beautiful welding spots
5. Product quality assurance
6. Available to weld multiple work pieces and heads in high efficiency
7. With credibility and protection
8. Good after sale service
Specification
| Mechanical Steel Wire Chicken Cage Welding Machine High - Speed Stability | ||
| Model | CK-AC-1 | CK-AC-2 |
| Input power | 380V 50 Hz | 380V 50 Hz |
| Max. width | 1200mm | 1200mm |
| Line wire space | 25—200mm | 25—200mm |
| Cross wire space | 25—200mm | 25—200mm |
| Line wire diameter | 1.8-3.0mm | 1.8-3.0mm |
| Cross wire diameter | 1.8-2.5mm | 1.8-2.5mm |
| Rated capacity | 60kva*2 | 60kva*2 |
| Welding point No. | 16 | 16 |
| Motor power | 2.2kw | 2.2kw |
| Feed line wire | Coils wire | Coils wire |
| Feed cross wire | Coil wire | Coils wire & pre-cut wire |
| Welding speed | 40-50times/min | 50-60times/min |
Service
Pre-Sales Service:
Inquiry and consulting support.
Sample testing support.
View our Factory.
Online visit
After-Sales Service:
Training how to install,operate and maintain the machine.
Engineers available to service machinery overseas.
One year gurantee for the whole machine.
Operation manual is availabl
Sincerely look forward to cooperate with you ! For more details about wire mesh welding machine, welcome to contact with us in any time ! We will fully committed to provide the best quality products and services.
