Product Details:
Payment & Shipping Terms:
|
| Model Number: | Application Breed Aquatic Mesh ( Poultry Mesh , Pigeon Mesh, Rabbit Mesh , Fox Mesh And So On ) Building Mesh ( Reinforcing Construction Mesh , Floor Warning Mesh , Seed-bed Mesh And Room Mesh ) Packing & Shipping 1 . The Spare Parts And Control Cabi | Condition: | New |
|---|---|---|---|
| Warranty: | 1 Year | After-sales: | Engineers Available To Service Machinery Overseas |
| Voltage: | 380v | Weld Wire Diameter: | 1.8-3.5MM |
| High Light: | chicken mesh making machine,wire cage welding machine |
||

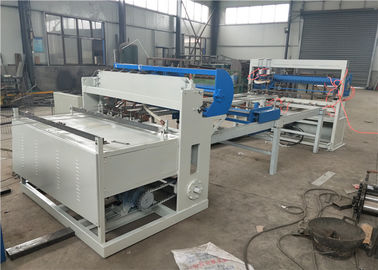

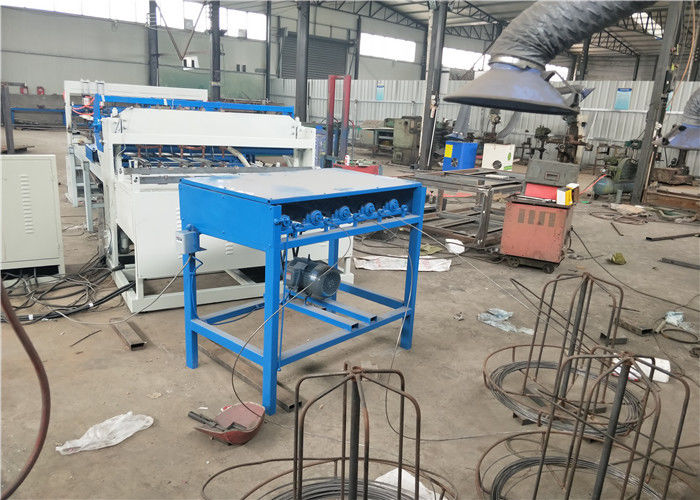

Automatic Chicken Cage Welding Machine For Breed Aquatics Mesh
description
This machine adopts electrical and electronic synchronous control technique, both welding time and separate-control welding is composed of digital and integrated electric circuit. This operation is accurate , it has stable function , firm welded point, and without welded tracks. Not only welding speed is fast, but also it is easy to learn and operate. Fallen weft structure and drawing materials are automatic, so it is even and accurate , the edge of mesh is regular, it is unnecessary to slice the ends, drawing mesh system adopts the device with elastic tension link and fixing mesh , it is easy to regulate mesh hole, and mesh size is rather accurate, welding aperture could also adjust randomly within range.
Basic Info
The pressure and wire diameter are adjustable.
The pitches can be different on the same mesh.
The MAX mesh width is 3000mm.
The machine Adopts synchro control technology,weld time and branch control welding are all consist of PLC digital Info system.Input panel are consist of touch control screen and key input.Operation is more intelligent and rational. It can be pressed by one time, and Welding later. It has 8 grades to suitable for different wire diameters.
Application
Breed aquatic mesh ( poultry mesh , pigeon mesh, rabbit mesh , fox mesh and so on )
Building mesh ( reinforcing construction mesh , floor warning mesh , seed-bed mesh and room mesh )
Packing & Shipping
1 . The spare parts and control cabinet will be loaded in wooden box.
2 . The main machine is nude packing or plastic packing
parameter
| Automatic Chicken Cage Welding Machine For Breed Aquatics Mesh | |
| Wire Diameter | 1.8-3.0(mm) |
| Rated Voltage | 380V |
| Welding Aperture | 25 x 25-200 x 200(mm) |
| Rated Electrical Power | 160KVA |
| Width of Mesh | 1200mm |
| Number of Warp | 15 |
| Machine Weight | 3T |
| Welding Speed | 60(times/minute) |
