Product Details:
Payment & Shipping Terms:
|
| Color: | White,blue | Condition: | New |
|---|---|---|---|
| Warranty: | 1 Year | After-sales: | Engineers Available To Service Machinery Overseas |
| Model Number: | Poultry Breed Cage Welding Machine | Voltage: | 380V |
| High Light: | chicken mesh making machine,wire cage welding machine |
||

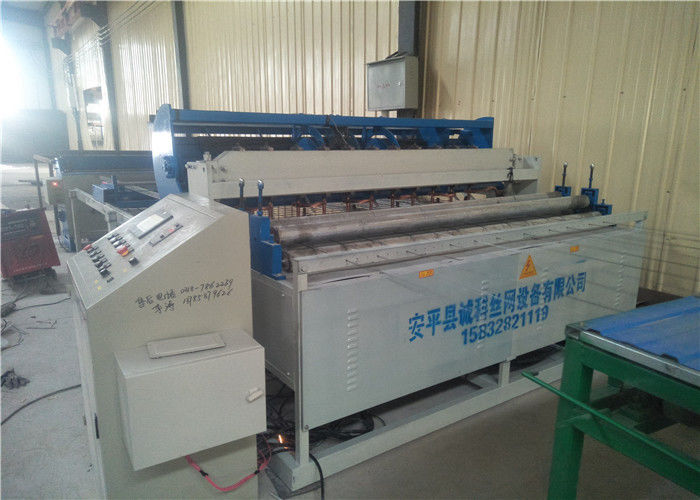

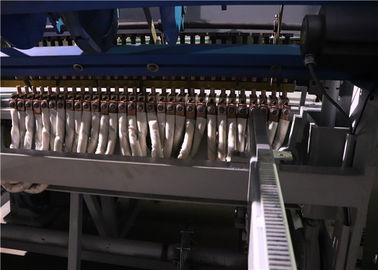

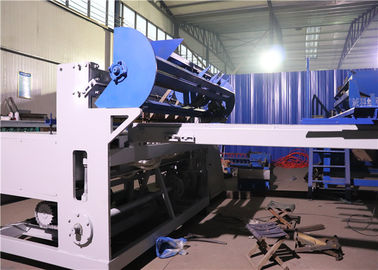

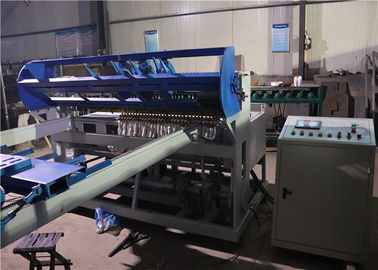

Animal Cage Welding Machine For Making Chicken Pigeon And Rabbit Cages
description
1 . wire diameter , 2 - 4mm
2 . line wire from , coil wire.
cross wire from , pre - cut wire
3 . control system , synchronous control with PLC , touch screen board
4 . firm welding , little noise , high speed
5 . finished Production , panel mesh
Features
1. The machine is made of thick steel plate and profile steel, high strength, high toughness, main structure more solid.
2. The welding adopts synchronous power control and separate-control, making the welding transformers working separately to reduce the capacity requirement of power transformer, reduce the impact current.
3. The cross wire space adjustment adopts PLC micro-computer control, set on the touch screen.
4. The mesh pulling system in cycle is automatically calculated. The mesh pulling car can pulling mesh by the cycle automatically.
5. The machine will stop working automatically if there is no cross wires in hopper device.
6. The cutting machine can cut the mesh as demand length automatically.
Specification
|
Animal Cage Welding Machine For Making Chicken Pigeon And Rabbit Cages |
|||
| Wire diameter | 2 - 4mm | Line wire feeding | Coil wire |
| Line wire space | 50 - 300mm | Cross wire feeding | Pre - cut wire |
| Cross wier Space | 20 - 300mm | Rated capacity | 125kva*2 |
| Width of Mesh | ≤ 1000mm | Input voltage | 3 - Phase 380V 50Hz |
| Welding speed | 80 - 110times / min | Weight | 2.8T |
Packing
1 . The spare parts and control cabinet will be loaded in wooden box.
2 . The main machine is nude packing or plastic packing
Customers notices
Each equipment with different specifications .
Therefore , we need you to send us specific inquiry , then we can quote better price and suitable detailed information according to your specific technical data and requirements .
Parameter includes
1 . Mesh panel wire diameter , from ___ mm to ___ mm
2 . Mesh opening size , from ___ mm to ____ mm
3 . Would you like mesh panel or mesh rolls ?
4 . Max . Wire mesh width ?
