Product Details:
Payment & Shipping Terms:
|
| Product Name: | Steel Wire Mesh Spot Welding Machin | Voltage: | 380V Or As Required |
|---|---|---|---|
| Application: | Welded Wire Mesh | End Products: | Roll Mesh |
| Warranty: | 1 Year | After-sales: | Overseas Service Provided |
| High Light: | steel wire mesh welding machine,wire mesh making machine |
||

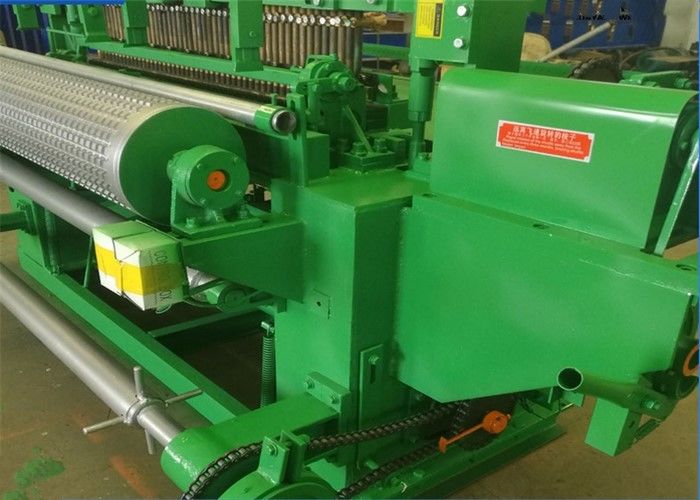

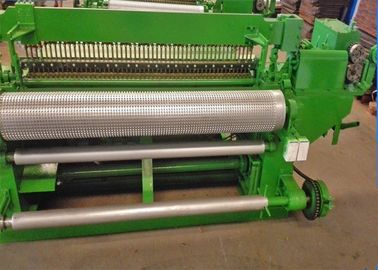

Automatic Zinc Coated Steel Welded Wire Mesh Machines For Galvanized Wire Mesh
description
Uniform mesh hole
Flat surface
Firm welding spot
Long service life
Corrosion protection
High quality
Beautiful appearanceCharacteristics of Holland fence machine:
Uniform mesh hole
Flat surface
Firm welding spot
Corrosion protection
High quality
Beautiful appearance
Features
1. This machine is fully automatic to feed wires, weld mesh, cut edge and roll mesh.
2. The raw material is applicable for low-carbon steel wire, galvanizing wire and stainless steel wire.
3. It has advantages of reasonable design, low noise, stable working, easier operation etc.
4. The mesh size is precise and can be set according to customers’ requirements.

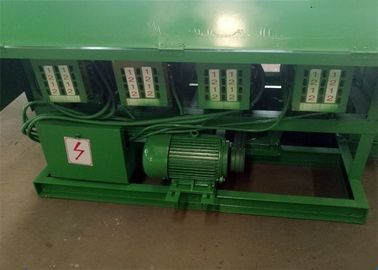

5. It adopts sealed &water cooling welding transformers, the scoria can not easily goes in.
Usage
1. Welded wire mesh is used in industry and agriculture building
2.Transportation and mining for all such purposes as poultry houses
3. Egg baskets,fishing, poultry
4.Runway enclosures
5. Draining rack
6. Fruit drying screen
7.Fence
Specification
| MODEL | Mesh width | Min mesh | Wire diameter(mm) | Welding speed(mm) | Mesh length(mm) | other |
| CK-RM-1X1/2-A | 1m | 1/2*1/2 | 0.45-0.85 | 90-120 | 130 |
1/2”X1” 1”X1/2” 1”X1” 2”X2” |
| CK-RM-4X1/2-A | 4ft | |||||
| CK-RM-1X1/2-C | 1m | 1/2*1/2 | 0.6-1.3 | 90-120 | 110 |
1/2”X1” 1”X1/2” 1”X1” 2”X2” |
| CK-RM-4X1/2-C | 4ft | |||||
| CK-RM-5X1/2-C | 5ft | |||||
| CK-RM-1X1/2-C | 1m | 1/2*1/2 | 0.8-1.6 | 80-90 | 100 |
1/2”X1” 1”X1/2” 1”X1” 2”X2” |
| CK-RM-4X1/2-C | 4ft | |||||
| CK-RM-5X1/2-C | 5ft | |||||
| CK-RM-6X1/2-C | 6ft | |||||
| CK-RM-1X1-A | 1m | 1*1 | 0.45-0.85 | 90-120 | 130 |
1”x2” 2”x1” 2”x2” 4”x4” |
| CK-RM-4X1-A | 4ft | |||||
| CK-RM-1X1-B | 1m | 1*1 | 0.6-1.3 | 90-100 | 110 |
1”x2” 2”x1” 2”x2” 4”x4” |
| CK-RM-4X1-B | 4ft | |||||
| CK-RM-5X1-B | 5ft | |||||
| CK-RM-1X1-C | 1m | 1*1 | 0.8-1.6 | 90-100 | 100 |
1”x2” 2”x1” 2”x2” 4”x4” |
| CK-RM-4X1-C | 4ft | |||||
| CK-RM-5X1-C | 5ft | |||||
| CK-RM-6X1-C | 6ft | |||||
| CK-RM-1X1-D | 1m | 1*1 | 1.4-2.6 | 80-90 | 80 |
1”x2” 2”x1” 2”x2” 4”x4” |
| CK-RM-4X1-D | 4ft | |||||
| CK-RM-5X1-D | 5ft | |||||
| CK-RM-6X1-D | 6ft | |||||
| CK-RM-2X1-D | 2m | |||||
| CK-RM-7X1-D | 7ft | |||||
| Special customized,: user can specify any width and mesh and wire diameter | ||||||
