Product Details:
Payment & Shipping Terms:
|
| Product Name: | Welded Wire Mesh Machine In Coils | Voltage: | 220V/380V/415V/440V |
|---|---|---|---|
| Usage: | Steel Wire Trays Baskets And Bird Cage | Mesh Type: | Roll Mesh |
| Warranty: | 1 Year | Material: | Galvanized Wire/stainless Steel Wire/black Wire |
| High Light: | wire mesh roll welding machine,wire mesh making machine |
||

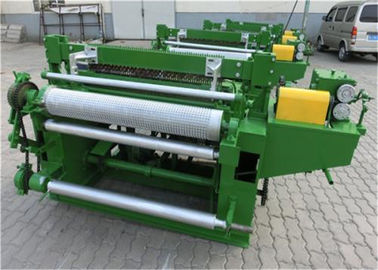

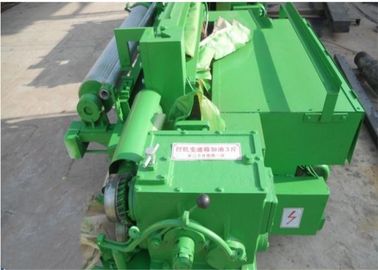

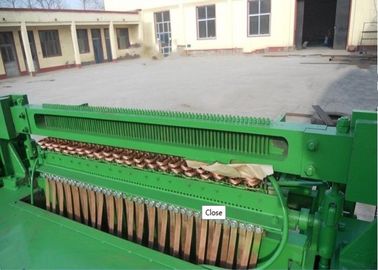

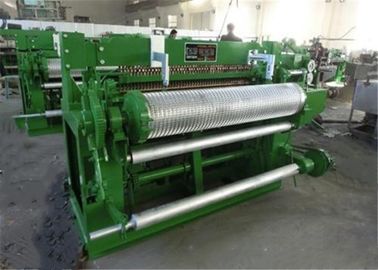

Roll Mesh Welding Machine For Making Steel Wire Trays Baskets And Bird Cage
description
Welded Wire Mesh Application
1. Welded wire mesh is used in industry and agriculture building
2.Transportation and mining for all such purposes as poultry houses
3. Egg baskets,fishing, poultry
4. Runway enclosures
5. Draining rack
6.Fruit drying screen
7. Fence
Features
1. Both of the longitude wire and cross wire are fed from wire coils automatically.
2. The raw material is suitable for black wire, galvanized wire or stainless steel wire.
3. The middle cutter and sider cutters can be adjusted randomly to make two mesh rolls at same time.
4. The mesh roll length can be set by counter switch on the control panel.
5. The welding transformers have 8 degrees and can be adjusted for different wire diameters.
6. The welding time and welding current can be adjusted on the control panel to guarantee welding solid.
7. It has advantages such as reasonable design, low noise, stable working, easier operation and electro-magnetism speed adjustment.
Specification
| Automatic Galvanized Steel Wire Roll Mesh Welding Machine | |||
| Type | CK-RM-Q | CK-RM-W | CK-RM-E |
| Wire diameter | 0.4-0.65mm | 0.65-1.2/1.8mm | 1.0-2.2mm |
| Aperture/pitch | 1/4”-1/2” | 1/2”-4” | 1”-4” |
| Mesh width | 3 feet, 4feet | 4 feet, 5 fee | 4 feet, 5 feet, 6 feet, 7feet |
| Motor | 2.2kw | 2.2kw | 2.2kw;4.0kw |
| Welding speed | Max. 75 rows/min | Max. 120 rows/min | Max. 80 rows/min |
| Measurement | 2.3*1.4*1.5m | 2.5/2.9*1.4*1.5m | 2.5/2.9*1.4*1.5m |
| Weight | 1.5T | 2T, 2.5T | 2T, 2.5T, 3T, 3.5T |
| Transformers | 50kva*3 | 60kva*4;60kva*5 | 60kva*4/5/6/7 |
service
1. Equipment installation and commissioning: assist and guide customer coordinate the equipment layout according to the actual situation, make reasonable arrangements for the overall planing of the installation location. Assigned technician to provide equipment installation, operation, ancillary facilities, production, repair, maintenance services and answer the relevant questions.
2. Training operation and maintenance personnel: our company will provide training of the operation and maintenance personnel according to customer s requirement.
