Product Details:
Payment & Shipping Terms:
|
| Product Name: | CNC Welded Wire Mesh Panel Machine For Fence | Voltage: | 380v |
|---|---|---|---|
| Mesh Opening: | 50*50-300*300mm | Weight: | 4T |
| Color: | Customer's Requirment | After-sales: | Engineers Available To Service Machinery Overseas |
| High Light: | diamond mesh fencing machine,hexagonal wire mesh machine |
||

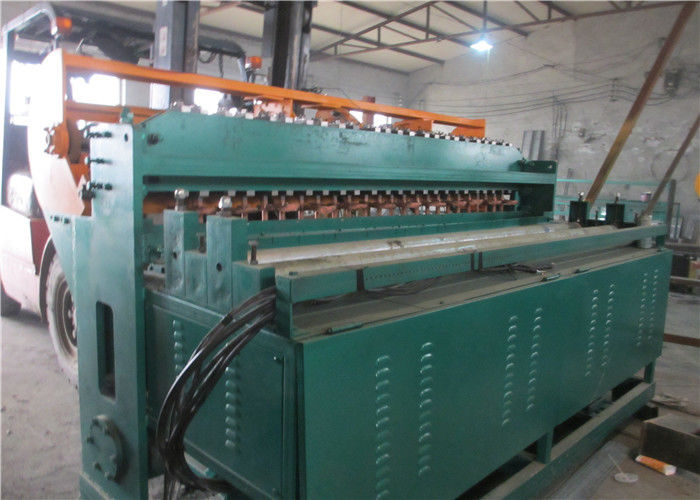

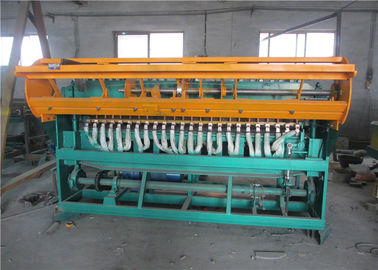

Welded Wire Mesh Fence Panel Making Machine For Fence And Construction
description
1. Output power strong, stable, reliable;
2 can be completed at one welding multiple welds;
3. Can adjust the descending and rising speed of the pressure head, easing the pressure impact on the workpiece, but also reduce the noise;
4 secondary conductor using the upper insulation, reliable insulation performance;
5. Upper electrode adopts cylinder pressure, pressure adjustment is convenient and accurate;
6. Operation by the foot switch control, with high productivity, low labor intensity;
7. Applicable metal mesh and mesh welding.
Features
1.All the pneumatic components used are with world famous brand. For customers, it is very easy to get the parts locally.
2.The welding power comes from the spring. It is easily to control the welding pressure, more over ten times than the traditional hopper.
3.The line wire and the weft wire are pre-straight and pre-cut, and the cross wire feeding is automatic and driven by step motor, which makes the cross wire falling and mesh aperture size more accurate.
4.wire mesh machine uses synchronous control technique, welding time and separate welding adopt Japan, Sony digital control system which can be input to touch screen control panel to adjust the mesh size, and it can weld different size mesh on the same wire mesh panel.
5.The mesh pulling system is controlled by step motor, which makes the pulling mesh aperture more standard and accurate.
Specification
Diameter: 2.5-6mm
Width of mesh: 2500mm
Mesh opening: 50*50-300*300mm
Welding head: 20mm*48pcs
Welding transformer:85kw*6pcs
Welding speed: 45times/min
Weight: 4T
Our Service
Pre-Sales Service
1. Inquiry and consulting support.
2.Sample testing support.
3. View our Factory.
4. We will provide you detail quotation for understanding our machines.
After-Sales Service
1. Training how to install the machine, training how to use the machine.
2. One year warranty for spare parts and main machine.
3. We will provide you technical support for whole life.
4. Engineers available to service machinery overseas.
