High Speed Pulley Wire Drawing Machine , 0 . 9 - 5 . 5mm Combined Drawing Machine

I'm Online Chat Now

High Speed Pulley Wire Drawing Machine , 0 . 9 - 5 . 5mm Combined Drawing Machine

China High Speed Pulley Wire Drawing Machine ,  0 . 9 - 5 . 5mm Combined Drawing Machine supplier
High Speed Pulley Wire Drawing Machine ,  0 . 9 - 5 . 5mm Combined Drawing Machine supplier High Speed Pulley Wire Drawing Machine ,  0 . 9 - 5 . 5mm Combined Drawing Machine supplier High Speed Pulley Wire Drawing Machine ,  0 . 9 - 5 . 5mm Combined Drawing Machine supplier High Speed Pulley Wire Drawing Machine ,  0 . 9 - 5 . 5mm Combined Drawing Machine supplier High Speed Pulley Wire Drawing Machine ,  0 . 9 - 5 . 5mm Combined Drawing Machine supplier

Large Image :  High Speed Pulley Wire Drawing Machine , 0 . 9 - 5 . 5mm Combined Drawing Machine

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-WD

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: No
Delivery Time: 15 Works day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Sets
Contact Now
Detailed Product Description
Condition: New Color: Customer's Requirment
Weigjt: 1-3t Warranty: 1 Year
After-sales: Overseas Service Provided Quality: Top Grade
High Light:

stainless steel wire drawing machine

,

continuous wire drawing machine

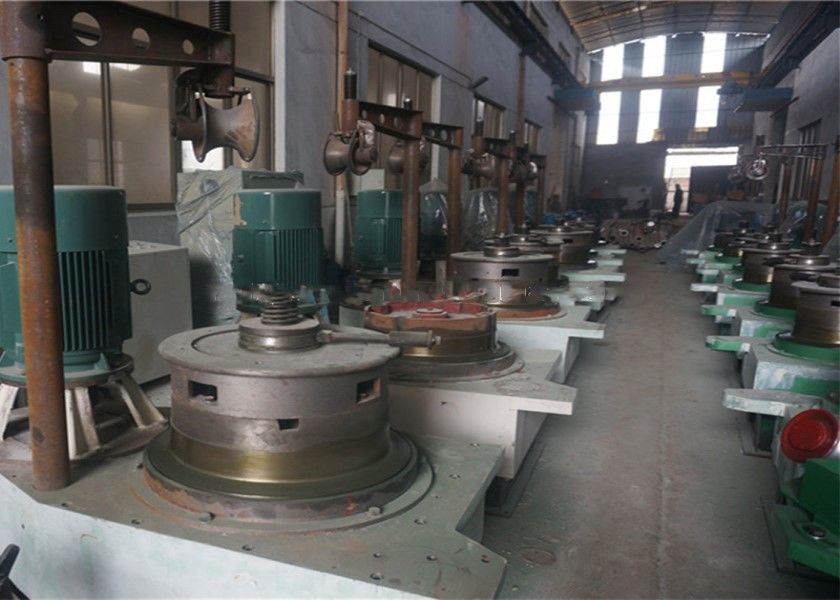

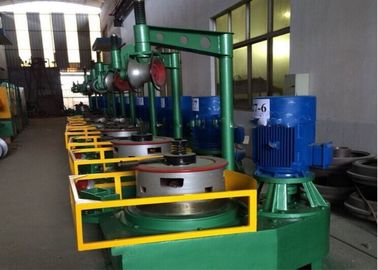

High Speed Automatic Wire Drawing Machine For Wire 0 . 9 - 5 . 5mm



Instruction of wire drawing machine



1. Drive System

The way of transmission for wire drawing machine is by: Variable frequency motor + Narrow v-belt + Decelerator with hardness gear surface + Narrow v-belt to drive the block.

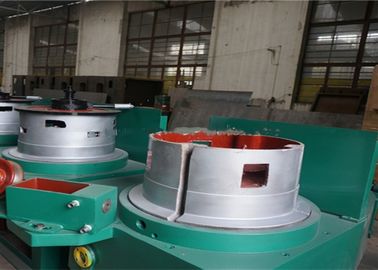

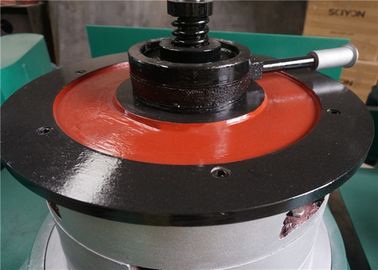

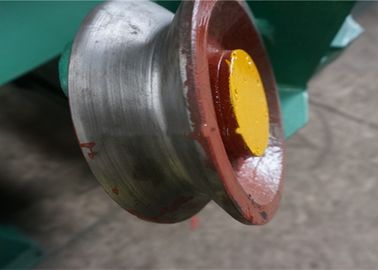

2. Block

Block is accurately founded by cast steel, re-tempering treatment after the rough processing, the work surface of block is welded by wear-resisting piano wire then sprayed with carbide tungsten, then finish machined by a grinding machine. The block working surface rigidity is over HRC60. The inside surface of block is sprayed with Aluminum.

Block inside adopts narrow gap type water cooling while block outside adopt concentrate air cooling. All blocks are fixed with leaning rollers.

3. Die box

All are normal die boxes(die dimension should be offered by client). Die box is cooled directly by water.

Tuning roller is driven by cylinder. Die box can be adjusted up to down, front to back, left to right agility and can be fixed. The screw in top and nut for die box are both made of tin bronze. Hard alloy made direction guiding die is fixed at die box inlet.

4. Gearbox

The chief bearings for gearbox with hard gear surface adopt products from Japanese NSK. All gearboxes are filled with VG220 compound gear oil before leaving factory.

5. Safety cover

On the top of each block there is a safety cover, which needs to close before the equipment start up. If the cover is open, the equipment can only run in slow speed. The safety cover has covered the total front of operation side and have daylight lamp inside for illuming use. Safety cover is controlled by spring.

6. Lubricating

Electric driven grease pump is fixed, which can automatically fill oil into the chief shaft bearing of block.

7. Take-up

The coiler take-up adopts frequency conversion motor drive, to achieve no-parking taking up. There are two rows of slide rail on the bottom of bearing frame, to easy to replace the frame. (The size of bearing frame is provided by the user).



Main technical parameters



NAME LINE1 LINE2
Way of drawing Pulley-type Pulley-type
Number of block 4 9
Block diameter(mm) 4 * φ 560 9 * φ 560
Way of timing AC frequency conversion timing AC frequency conversion timing
Motor power(KW) 4*3 9*18.5
Diameter of inlet wire(mm) φ6.5 φ4.0
Diameter of outlet wire(mm) φ4.0 φ1.6
Designed drawing speed(m/min) ≤ 110 ≤ 210
Way of control Total digital Total digital
Material of inlet wire High & Medium & Low carbon steel wire High & Medium & Low carbon steel wire
Way of pay-off Rotating wheel pay-off Rotating wheel pay-off
Motor power of pay-off(KW) 11 11
Way of take-up Φ630 horizontal spooler Φ630 horizontal spooler
Operation direction From left to right From left t righ
Power source 380V, 50HZ 380V, 50HZ
