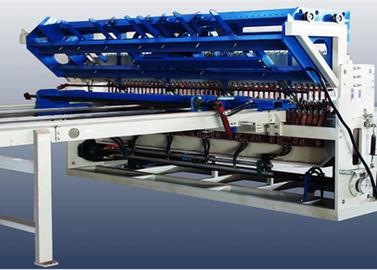

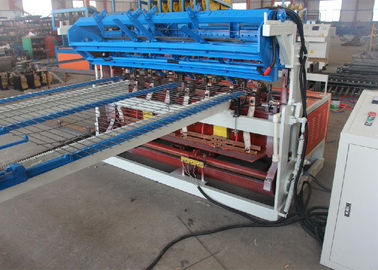

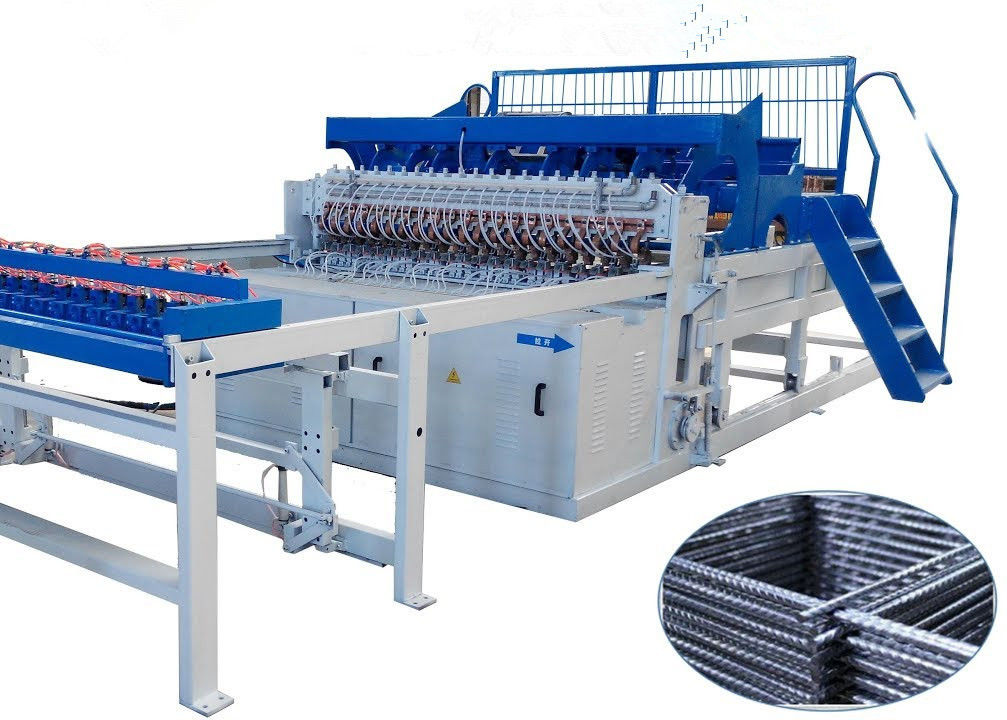

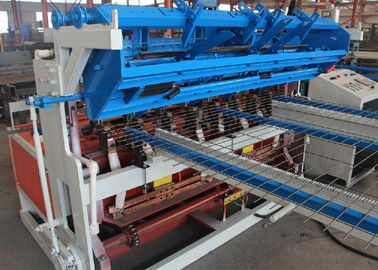

High Precision 8T Reinforcing Mesh Welding Machine 5 - 12mm Water - Cooled

Automatic Concrete Reinforced Mesh Machine 5 - 12mm Wate r- Cooled

working principle

1 . Cross wire & Line wire are both pre-cut wires. Cross wires are feeded to the mould manually then the wire falling autoamticlly, while line wires are automatically feeded by the servo motor .

2 . The main machine starts welding and adopts a synchronous control technology, both branch control welding time and welding time are controlled by a PLC digital programming system, and the pore size can be adjusted only by direct input on a touch screen control panel; welding power is pneumatic, and welding pressure can be easily and intuitively adjusted.

3 . The servo motor controls an automatic mesh drawing process until the whole mesh is welded , and the automatic mesh connecting and discharging system is started; the welding of the next mesh is started .

Machine Advantage

1 . This machine adopts synchronous control technique . The center-control and welding time are composed of PLC .
2 . The input front-panel has two forms , touch screen and keyboard that makes the machine more intelligent and reasonable and it could press at one time , welding repeatedly .
3 . The longitude wires and cross wire distance can be adjusted by inputing the data you want . The greatest advantage is that you can adjust the distance weft wire at random on the same piece of wire mesh sheet .

Usage

Highway , railway and various function of protection . For construction which used for basis of high building , roof mesh , floor mesh . It is also widely used in agriculture and poultry mesh , farming mesh and so on .

Packaging Details

1 . The bracket and auxiliary equipments will be with plastic package , spare parts in carton box .

2 . The main machine will be fixed in the container by steel wire rope to make it stable .

3 . It needs one 20GP , 40GP or 40 " HC for shipment
